Dent Repair Systems

Rate this item
(3 votes)
A3D
Product info:

Digital Dent Puller

Functions: washer welding, carbon rod heating

• Microprocesser controlled, the multi-function control panel sets the spot welding parameters automatically and also allows manual adjustment of the parameters. And also allows you to adjust the parameters by manual.

• When working on top of car and narrow interior spaces the main unit is separable from the trolley.
• Automatic detection welding for operation convenience.
• Flexible 3 ways earth connecting.
• Inner fan for heat dissipation.
• Copper transformer.
• Thermal protection.
• Compact, portable.

Model: A3D
Input Voltage(50/60Hz): 230V /1ph
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (kg): 42
Gross Weight (kg): 45
Dimensions (mm):L580 x W360 x H810
Input voltage can be custom made.



Product info:
Functions: washer welding, carbon rod heating.

• When working on top of car and narrow interior spaces the main unit is separable from the trolley.
• Automatically sets timing status.
• Inner fan for heat dissipation.
• Copper transformer.
• Thermal protection.
• Compact, portable.

Model: A3T
Input Voltage(50/60Hz): 230V /1ph
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (kg): 39
Gross Weight (kg):43.5
Dimensions (mm): L580 x W360 x H810
Input voltage can be custom made.

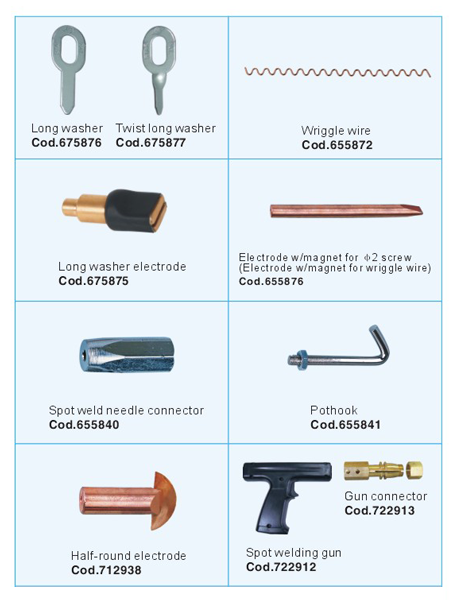

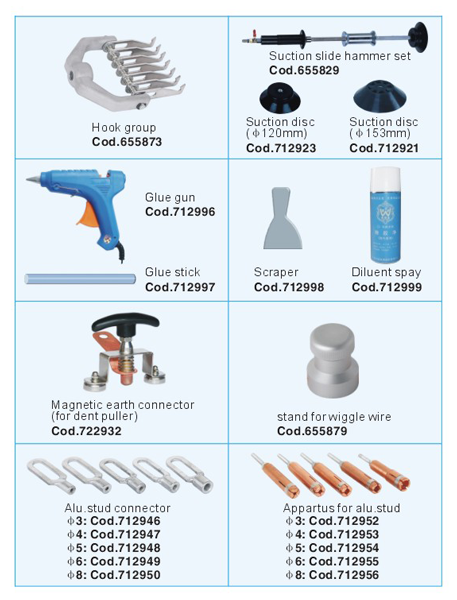

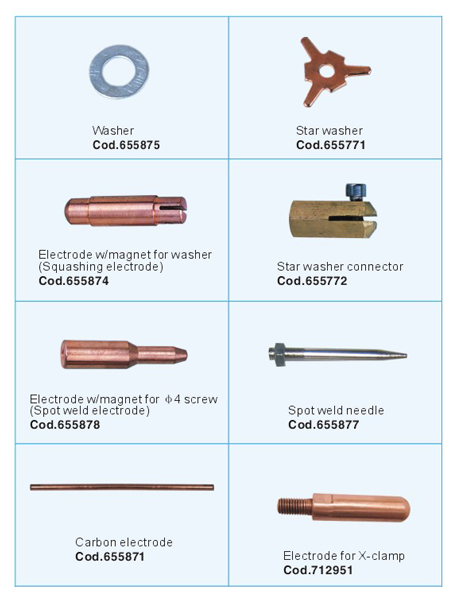

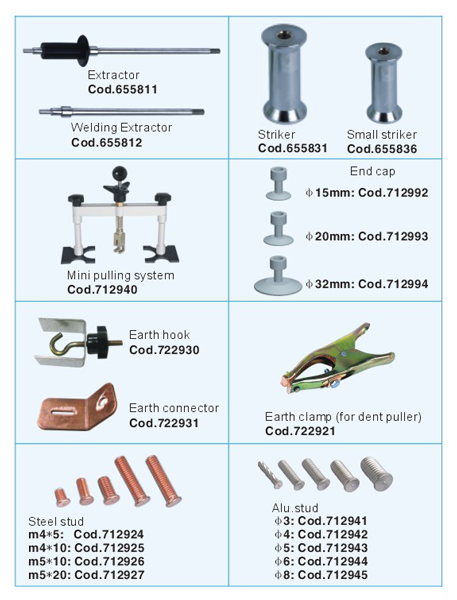

Both Bodyman Dent Pullers come with a heavy duty trolley, stud welding gun, washer welding gun, studs, straight washers, twisted washers, thick wriggle wire, thin wriggle wire, claw, carbon rod, weld-on slide hammer, star washers all packed in a plastic tool box.



Suitable for washer welding, carbon rod heating, partial heating and tempering for car body dent.

• For use on car top and narrow interior space
• Automatically sets timing status
• Inner fan for heat dissipation
• Easy-to-use welding gun
• 2 function welding tip
• Copper transformer
• Thermal protection
• Compact, portable

Model: A3
Input Voltage(50/60HZ): 230V /1PH
Charge Voltage (V): 8-9.5
Max Welding Current (A): 1300
Net Weight (Kg): 28.5
Gross Weight (Kg): 33
Dimensions (mm) L440 x W280 x H280
Input voltage can be custom made.
